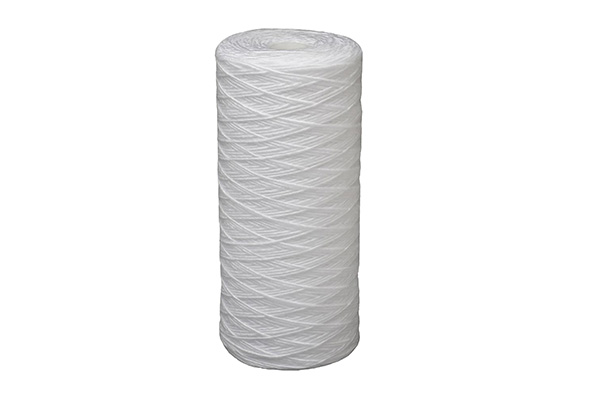

114mm Large Diameter String Wound Filter Cartridge
The 114mm big-diameter string wound cartridge delivers higher flow capacity and longer service life than standard-size units. Its larger outer diameter provides a greater depth filtration area, making it suitable for demanding applications where standard cartridges need changing too frequently.
- Micron Rating
- 1–50 µm
- Flow Rate
- 1–5 GPM per 10"
- Max Pressure Drop
- 4 bar@21°C / 2.4 bar@80°C
- Max Temperature
- 80°C
- Material
- PP
- Size
- 114mm OD · 10 / 20 inches · DOE
| Media | PP, Absorbent Cotton, Glass Fibre |
| Centre Core | SS304, SS316L |
| Outer Diameter | 114mm |
| Lengths Available | 10 / 20 inches |
| Filtration Rating | 1, 5, 10, 20, 50 micron |
| Max Operating Temperature | Up to 250u00b0C (media dependent) |
| Max Differential Pressure | 3.0 bar at 90u00b0C |
| Certifications | ISO 9001 |
Why Choose Pullner Filter?
More than just a supplier – we’re your technical partner in filtration solutions
Laboratory and Testing Facilities
In-house testing capabilities for materials and quality assurance with advanced equipment and certified technicians.
- Particle counting analysis
- Pressure drop testing
- Material compatibility testing
Design and R&D Services
Position as technical partner, not just supplier. Custom solutions for your unique challenges.
- Custom filter design
- System optimization
- Technical consultation
Free Services
Comprehensive free services to support your filtration needs without any hidden costs.
- Free testing for filtration systems
- Free custom filtration design
- Up to 2 free samples
Global Manufacturing
State-of-the-art manufacturing facilities with worldwide delivery capabilities and local support.
- ISO 9001 certified facilities
- Global logistics network
- Local technical support
