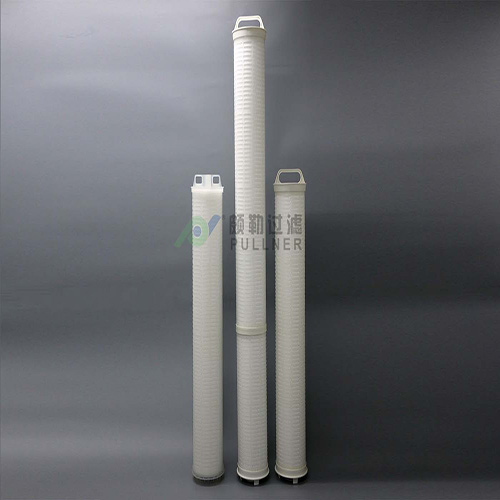

3M CUNO High Flow Filter Cartridge Replacement (PHFM Series)
PHFM High Flow Filter Cartridge is made of diameter 6.5″ and pleated design with big flow area and dirt holding capacity. It can meet different flow requirements, with a wide range of chemical compatibility, can be applied to various fields.
- Micron Rating
- 1μm-100μm
- Flow Rate
- 88 GPM - 176 GPM
- Max Temperature
- PP 82°C · FO 120°C · GF 121°C
- SKU
- PHFM
- Media-Selectable Temperature Ceiling: 82°C on polypropylene, 120°C on organic fiber, 121°C on glass fiber — the same format covers ambient and hot duty.
- Large 6.5" Diameter: Greater flow area per element than standard high-flow cartridges, cutting element count.
- High Dirt-Holding Capacity: Deep-pleated construction extends intervals between change-outs.
- Broad Chemical Compatibility: Media range covers aqueous, solvent and pharmaceutical process streams.
- Reinforced End Caps: Fiberglass-reinforced polypropylene maintains seal integrity under differential load.
- Consistent Pressure Rating: 3.44 bar differential held across all three media, each at its own rated temperature.
| Filter Media Options | PP (deep-pleated or melt PP) · FO (organic fiber) · GF (glass fiber / polyester) |
| Support / Diversion | Polypropylene, organic fiber or polyester — matched to media |
| End Cap | Fiberglass-reinforced polypropylene |
| Outer Diameter | 6.5" (165 mm) |
| Max. Operating Temperature | PP 82°C · FO 120°C · GF 121°C |
| Max. Differential Pressure | 3.44 bar — PP at 21°C, FO at 120°C, GF at 121°C |
| Micron Rating | 1–100 µm |
| Flow Rate | 88–176 GPM (approx. 20–40 m³/h) |
Industries served
- RO pre-filtration and desalination pre-treatment
- Power plant condensate water filtration
- Biopharmaceutical raw materials, solvents, and water filtration
- Food & beverage process water treatment
Primary duties
- Power Generation: Condensation water filtration.
- Desalination: RO pre-filtration and desalination pre-treatment.
- Biopharmaceutical: Pharmaceutical raw materials, solvents and process water.
- Food & Beverage: Process water treatment.
| Series | Type | Media | Micron | Length | Structure | Seal Material | End Cap Type | |||||||
| PHF | M | PP | 0010 | = 0.1µm | 1500 | = 15µm | 20 | = 20" | G | = PP Outer Cage | V | = Viton | ZA | = Horizontal-Bar Type (HFM) |
| W | PBT | 0100 | = 1.0µm | 2000 | = 20µm | 40 | = 40" | M | = Melt Blown | S | = Silicone | ZB | = Cross-Shaped Type (HFM) | |
| GF | 0500 | = 5.0µm | 4000 | = 40µm | 60 | = 60" | S | = Plastic Net | E | = EPDM | ||||
| 1000 | = 10µm | 7000 | = 70µm | |||||||||||
| 1000 | = 100µm | |||||||||||||
