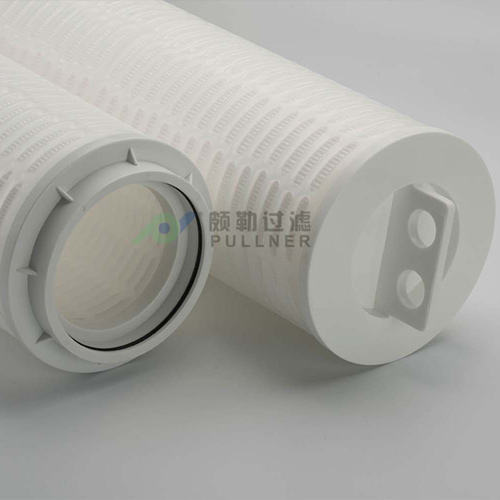

Parker High Flow Filter Cartridge Replacement
PHFK Series High Flow Filter Cartridge is made of diameter 6″ and pleated design, with high-strength pp center core, outside to inside flow direction. Outer cage have two types: integral pp cage and polyester mesh.
- Micron Rating
- 1, 5, 10, 15, 20, 40, 70, 100 µm
- Flow Rate
- 70 m³/h max
- Max Temperature
- PP 82°C · PET 121°C
- SKU
- PHFK
- 6" (152 mm) Diameter: Large-diameter high-flow format.
- High-Strength PP Centre Core: Polypropylene core supports the pleat pack.
- Two Outer Cage Options: Integral PP cage or polyester mesh.
- Thermally Welded Connections: All joints are thermal-welded rather than adhesive-bonded.
- Two Media Types: PP rated to 82°C, PET rated to 121°C.
- Eight Micron Ratings: 1 to 100 µm.
- Four Seal Materials: NBR, silicone, EPDM or FKM.
- Defined Change-Out Point: Replacement suggested at 2.5 bar differential (20°C).
| Filter Medium | PP (deep-pleated polypropylene) or PET (pleated polyester) |
| Support / Drainage | Polypropylene (PP type) or polyester (PET type) |
| End Caps | Glass-fiber reinforced polypropylene |
| Centre Core | High-strength polypropylene |
| Outer Cage | Integral PP cage or polyester mesh |
| Seal Materials | NBR, silicone, EPDM, FKM |
| Micron Ratings | 1, 5, 10, 15, 20, 40, 70, 100 µm |
| Outer Diameter | 6" (152 mm) |
| Length | 40" (1016 mm) |
| Max. Operating Temperature | PP type 82°C · PET type 121°C |
| Max. Operating Differential Pressure | PP type 3.44 bar at 82°C · PET type 3.44 bar at 121°C |
| Suggested Change-Out Pressure | 2.5 bar at 20°C |
| Max. Flow Rate | 70 m³/h |
| Filtration Direction | Outside to inside |
| Connections | Thermally welded |
Industries served
- RO pre-filtration, desalination pre-treatment, and general process water filtration
- Power plant makeup water, condensate water, and coolant filtration
- Biopharmaceutical raw materials, solvents, and water filtration
- Petrochemical solvents, quench water, brine, and other chemical streams
Primary duties
- High-Flow Filtration: Systems rated to 70 m³/h per element.
- Elevated-Temperature Duty: PET media configuration for service to 121°C.
- Parker High Flow Replacement: Dimensional equivalent for existing 6" / 40" high-flow housings.
| Series | Type | Media | Micron | Length | Structure | Seal Material | End Cap Type | |||||||
| PHF | K | PP | 0010 | = 0.1µm | 1500 | = 15µm | 20 | = 20" | G | = PP Outer Cage | V | = Viton | ZA | = Single-Ring (HFK) |
| PBT | 0100 | = 1.0µm | 2000 | = 20µm | 40 | = 40" | S | = Plastic Net | S | = Silicone | ZB | = Double-Ring (HFK) | ||
| GF | 0500 | = 5.0µm | 4000 | = 40µm | 60 | = 60" | E | = EPDM | ||||||
| 1000 | = 10µm | 7000 | = 70µm | |||||||||||
| 1000 | = 100µm | |||||||||||||
