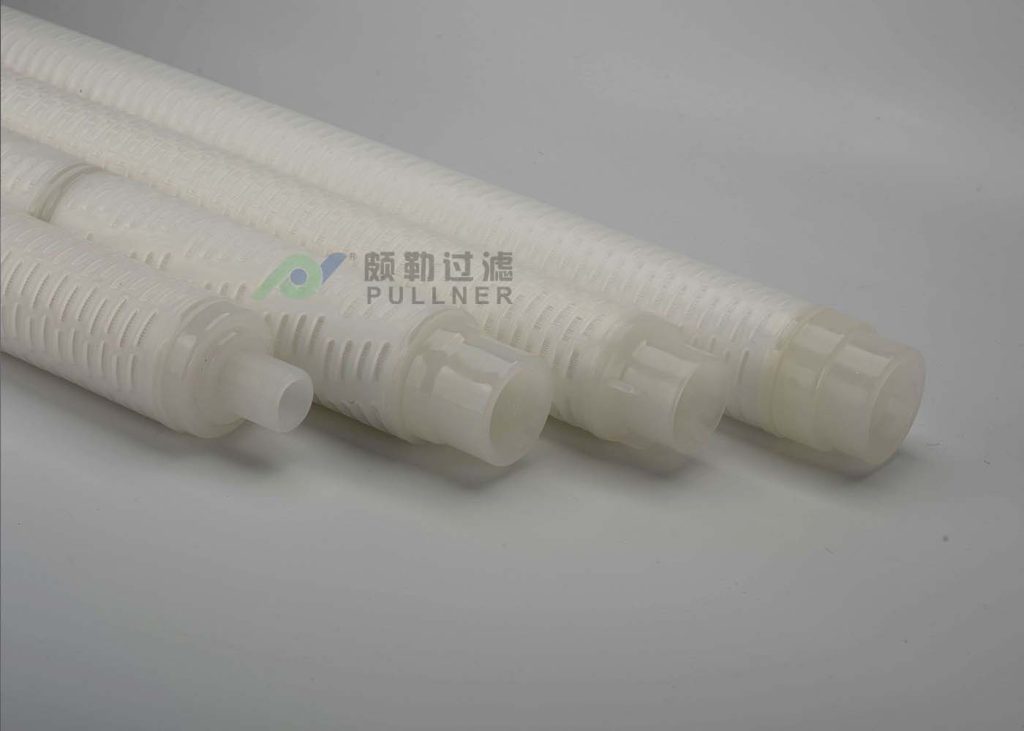

PHFZ Condensate Polishing Pleated Filter Cartridge
PHFZ series Pleated filter cartridge is a kind of Pleated filter cartridge that can be washed repeatedly. It is all formed by hot-melt welding, with no secondary pollution and no media shedding.
It is specially designed for condensate refined treatment of power plant. According to the structure form can be divided into PHFZ-I (7 sections), PHFZ-II(4+3) and PHFZ-II(3+1) three types of products, the type PHFZ-II(4+3) filter cartridge is 40 “and 30” welded, is a total diameter of 69 skeleton product.
- Micron Rating
- 1, 5, 10, 15, 20, 40, 70 µm
- SKU
- PHFZ
- Gradient Depth Structure: Multi-layer pore grading loads contaminant through the media thickness, raising dirt-holding capacity and extending replacement intervals.
- Large Effective Area: Deep pleating delivers high throughput at low differential pressure.
- Coreless 69 mm Format: Removing the centre core frees media area within the same envelope.
- Inside-to-Outside Flow: Retains contaminant inside the cartridge, so solids leave with the element instead of dropping into the housing at change-out.
- Fewer Cartridges per System: High per-element capacity reduces cartridge count and housing size, lowering capital cost, footprint and labour.
- Seven Micron Ratings: 1 to 70 µm across three lengths, covering polishing through bulk particulate duty.
- Seal Options: NBR, silicone, EPDM or Viton matched to fluid and temperature.
| Filter Media | Polypropylene pleated depth media, or glass fiber |
| Support / Drainage | Polypropylene |
| End Caps | Glass-fiber reinforced polypropylene |
| Seal Materials | NBR, silicone, EPDM, Viton |
| Micron Ratings | 1, 5, 10, 15, 20, 40, 70 µm |
| Outer Diameter | 69 mm |
| Standard Lengths | 20" (508 mm) · 40" (1016 mm) · 60" (1524 mm) |
| Core | Coreless design |
| Flow Direction | Inside to outside |
| Pore Structure | Multi-layer gradient (depth media) |
Industries served
Power Generation: Condensate polishing, stator cooling water treatment, and related power-plant water streams.
Primary duties
- Power Plant: Condensate polishing, make-up water and cooling water pre-filtration.
- Seawater Desalination: RO pre-filtration ahead of membrane trains.
- Municipal & Commercial Water: Drinking water treatment and commercial filtration systems.
- Petrochemical & Electroplating: Process stream filtration and bath maintenance.
- Energy, Coatings & Graphite: Industrial process liquids carrying fine particulate.
- Mining & Machining: Industrial water treatment and coolant filtration.
Example: PHFZ PP 0500 70 III Z2 W
| Series | Material | Micron | Length | Structure | Connection Thread | End Thread |
| PHFZ | PP = Polypropylene | 0100 = 1.0µm 0400 = 4.0µm 1000 = 10µm |
60 = 60" 70 = 70" |
I = 7-part (φ69) II = 4+3 (φ65) III = 3+1 (φ69) |
Z1 = 1 1/2"–12 Z2 = M33 × 1.5 |
W1 = M8 W2 = M10 W3 = M6 W4 = 3/8 |
