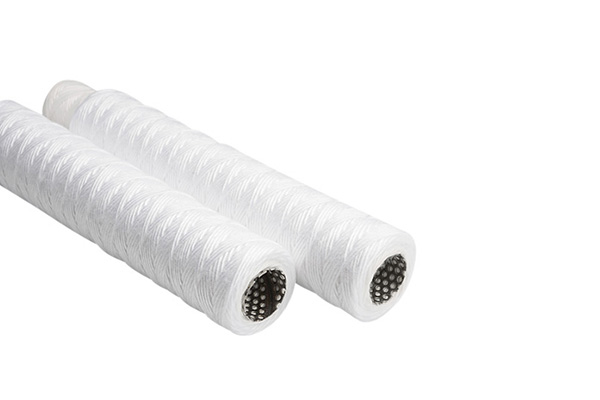

PLX Standard String Wound Filter Cartridge
The PLX is Pullner’s standard string wound filter cartridge, available in PP, absorbent cotton, or glass fibre media wound onto a stainless steel centre core. It handles general pre-filtration duties across industrial water treatment, food and beverage, and chemical processing. Lengths of 10, 20, 30, and 40 inches cover the most common housing sizes.
- Micron Rating
- 1, 3, 5, 10 µm
- Max Temperature
- media-dependent: 60–200°C
- SKU
- PLX
- Graded Honeycomb Structure: Sparse outer, dense inner layers load contaminant through the depth instead of blinding at the surface.
- High Contaminant Holding Capacity: Extends service life and lengthens intervals between change-outs.
- Low Pressure Drop: Minimal differential across the media, reducing pumping energy.
- Four Media Options: Polypropylene, degreasing cotton, glass fiber or organic fiber — selected on chemistry and temperature, not just micron.
- Temperature Range to 200°C: Glass fiber media extends service well beyond the polypropylene limit.
- Rigid Core Options: PP, 304 or 316L stainless to match pressure and corrosion duty.
- Effective on Rust and Suspended Solids: Well suited to particulate and iron-oxide removal.
| Filter Media | PP (polypropylene) · CO (degreasing cotton) · GF (glass fiber) · FO (organic fiber) |
| Center Core | Polypropylene, stainless steel 304 or 316L |
| Structure | Wound honeycomb — sparse outer layers, dense inner layers |
| Micron Ratings | 1, 3, 5, 10 µm |
| Standard Lengths | 5" / 10" / 20" |
| Max. Operating Temperature | Media-dependent — PP 60°C · cotton 120°C · glass fiber 200°C · organic fiber 120°C |
| Max. Operating Differential Pressure | 4.0 bar |
| Recommended Change-Out ΔP | 2.0 bar |
| Model Code Structure | PLX – media/core – micron – length (e.g. PLX-A3-0500-40 = cotton on stainless core, 5 µm, 40") |
- Suspended Solids Removal: General industrial particulate duty across a wide micron range.
- Rust and Iron Particle Filtration: Streams carrying oxide particulate.
- RO Pre-Filtration: Upstream protection for reverse-osmosis membranes.
- High-Temperature Duty: Glass fiber configuration for service up to 200°C.
- Chemically Aggressive Streams: Media and stainless core selected to match the process fluid.
