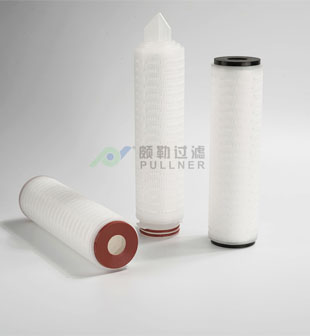

PP Pleated Water Filter Cartridge
A PP pleated water filter cartridge is a type of water filter that uses polypropylene (PP) as the filtering material. PP is a type of plastic that is known for its strength, durability, and chemical resistance. PP pleated water filter cartridges are typically used in pre-filtration applications, where they remove large particles and contaminants from water.
PPL series pleated water filters are made of polypropylene, with high retention rate, high flow rate, high dirt holding capacity, high filtration efficiency and low cost.
With extensive chemical compatibility, used for filtering various acid base and solvent.
- Flow Rate
- 2 m³/h (suggested)
- Max Temperature
- up to 80°C
- SKU
- PPL
- Cleanroom Manufactured: Every cartridge is produced in a controlled workshop, limiting particulate introduced during assembly.
- Integrity-Tested per Element: Each cartridge is individually tested rather than batch-sampled.
- ISO 9001 Production: Manufactured under a certified quality management system.
- Economic Specification: Positioned as the cost-effective pleated option for general water duty, without the depth-media premium.
- 40" Format: Long-element build reduces cartridge count and change-out labour on mid-size systems.
- All-Polypropylene Build: Single-material construction throughout the flow path.
- Four Seal Options: Silicone, NBR, Viton or EPDM to match the process fluid.
| Filter Media | Polypropylene |
| Support / Drainage / Cage / Core / End Caps | Polypropylene |
| Outer Diameter | 2.7" (69 mm) |
| Inner Diameter | 30 mm |
| Length | 40" (1016 mm) |
| Seal Materials | Silicone, NBR, Viton, EPDM |
| Suggested Flow Rate | 2 m³/h |
| Max. Operating Temperature | 80°C |
| Max. Operating Differential Pressure | 2.5 bar |
| Quality | Cleanroom production, integrity-tested per element, ISO 9001 |
Industries served
Biotech: Cell culture, direct flow filtration, process workflows, single-use solutions
Food & Beverage: Wine, beer, cider, distilled spirits, non-alcoholic drinks, dairy, food & ingredients, cannabis, utilities
Chemicals & Polymers: Process water, chemicals, petrochemicals
Microelectronics: Semiconductors, data storage, displays, graphic arts, photovoltaic
Oil & Gas: Upstream, midstream, downstream, EPC
Power Generation: Combined cycle plants, gas turbines, nuclear plants, steam plants, renewables
Desalination: RO plant pre-filtration
PP pleated cartridges work by passing water through layers of pleated polypropylene media. The pleats trap particles and contaminants as water flows through. Particle removal depends on the pore size of the PP media.
They are a popular pre-filtration choice because they effectively remove a wide range of particles and contaminants, are inexpensive, and require minimal maintenance.
Primary duties
- Drinking Water: Potable water treatment duty.
- RO Pre-Filtration: Membrane protection upstream of reverse osmosis.
- Commercial Water Treatment: Building and facility water systems.
- Small to Mid-Size Systems: Plants where a 40" element sizes correctly without moving to high-flow formats.
Example: PPL 0100 10 C1 E
| Series | Micron | Length | End Cap Type | Seal Material |
| PPL | 0020 = 0.2µm | 05 = 5" | C1 = 226 / Spear | E = EPDM |
| 0045 = 0.45µm | 10 = 10" | C2 = 222 / Spear | S = Silicone | |
| 0100 = 1.0µm | 20 = 20" | C5 = 222 / Flat | V = Viton | |
| 0300 = 3.0µm | 30 = 30" | C6 = 226 / Flat | P = FEP | |
| 0500 = 5.0µm | 40 = 40" | C9 = DOE | ||
| 1000 = 10µm | ||||
| 2000 = 20µm | ||||
