Seawater Desalination RO Pre-Filter High Flow Cartridge (PHF-L Series)
Seawater desalination plant RO system pre-filtration high flow water filter, diameter 6″/6.5″, length 20″/40″/60″, wide range of filtration rating.Large filtration area provides high flow rates combined with low pressure drops and long service life. Graded filtration pore size in one high flow filter cartridge.
Materials of Construction
| Filter Material | PP: Deep Pleated PP / Melt PP | FO: Organic Fiber | GF: Glass Fiber / Polyester |
| Support / Diversion | PP | Organic Fiber | Polyester |
| End Caps | Fiberglass-reinforced polypropylene | Fiberglass-reinforced polypropylene | Fiberglass-reinforced polypropylene |
Operating Characteristics
| Maximum Operating Temperature | PP: 82°C FO: 120℃ GF: 121℃ |
| Maximum Operating Differential Pressure | PP: 3.44 bar / 21°C FO: 3.44 bar / 120°C GF: 3.44 bar / 121°C |
Design Parameters
| Size (Diameter × Length) | Design Flow (m³/hr) | Maximum Flow (m³/hr) | Filter Area (m²) |
| 6" × 20" | 15 | 40 | 2.6 |
| 6" × 40" | 30 | 80 | 5.2 |
| 6" × 60" | 45 | 120 | 7.8 |

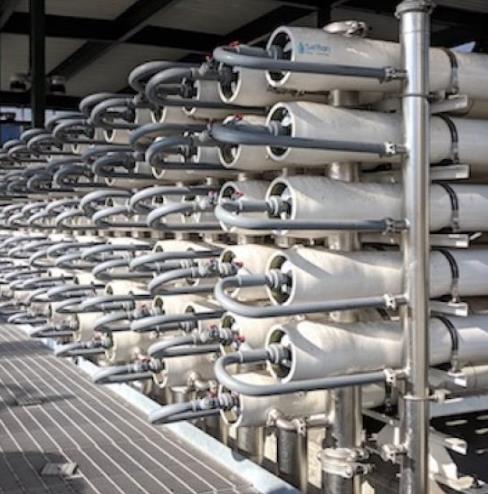

Seawater desalination plants: RO system pre-filtration.
Example: PHF L PP 0500 40 G V ZA
| Series | Type | Media | Micron | Length | Structure | Seal Material | End Cap Type | |||||||
| PHF | L | PP | 0010 | = 0.1µm | 1500 | = 15µm | 20 | = 20" | G | = PP Outer Cage | V | = Viton | ZA | = Single-Ring (HFK) |
| LH | PBT | 0100 | = 1.0µm | 2000 | = 20µm | 40 | = 40" | M | = Melt Blown | S | = Silicone | ZB | = Double-Ring (HFK) | |
| K | GF | 0500 | = 5.0µm | 4000 | = 40µm | 60 | = 60" | S | = Plastic Net | E | = EPDM | ZA | = Horizontal-Bar Type (HFM) | |
| M | 1000 | = 10µm | 7000 | = 70µm | ZB | = Cross-Shaped Type (HFM) | ||||||||
| W | 1000 | = 100µm | None | = (HFL / HFLH) | ||||||||||
